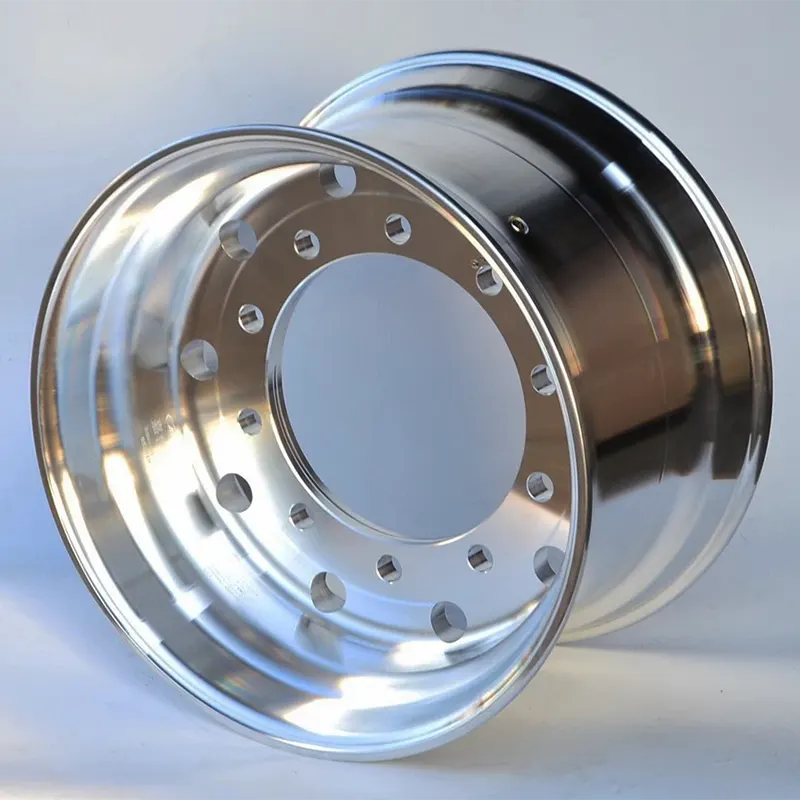

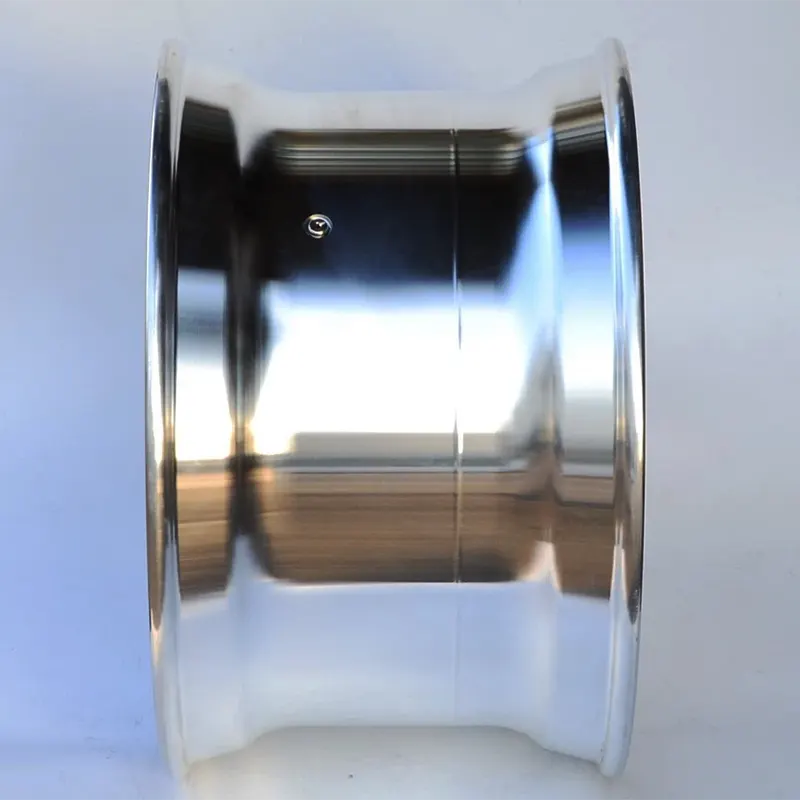

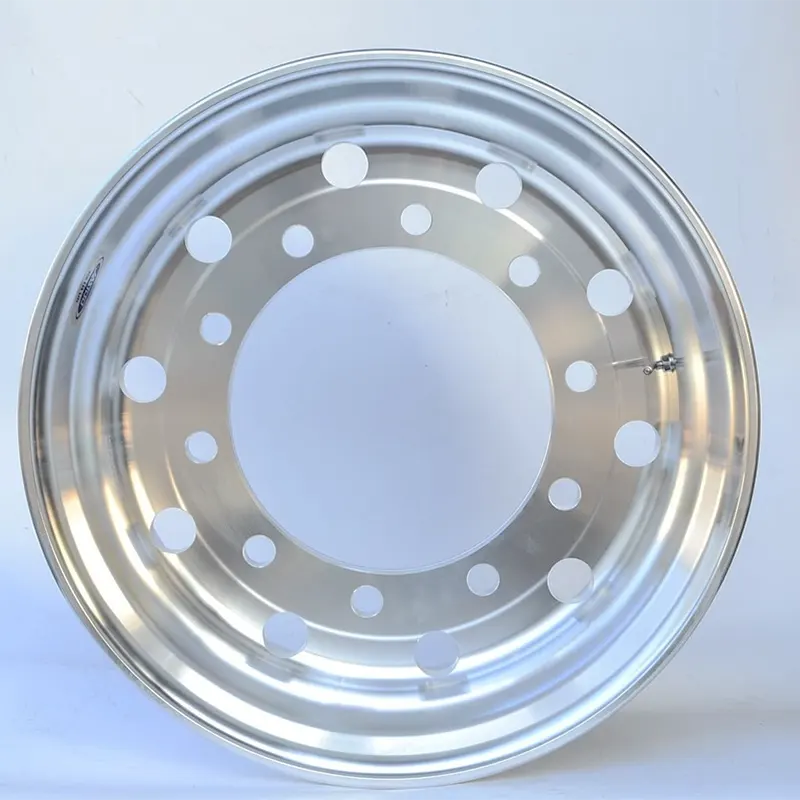

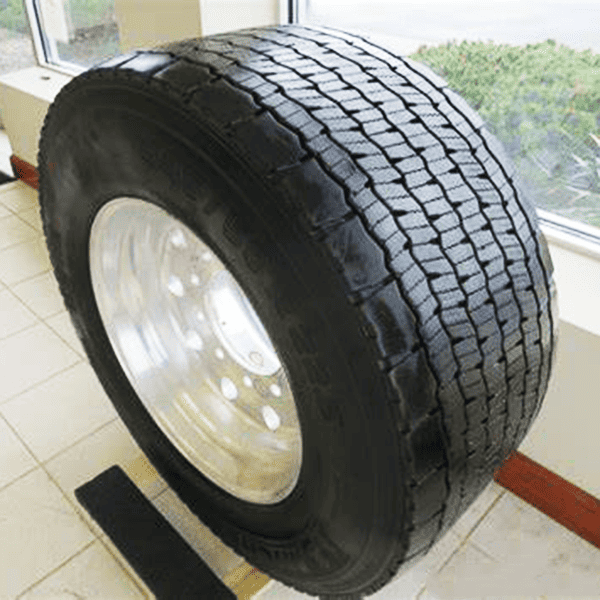

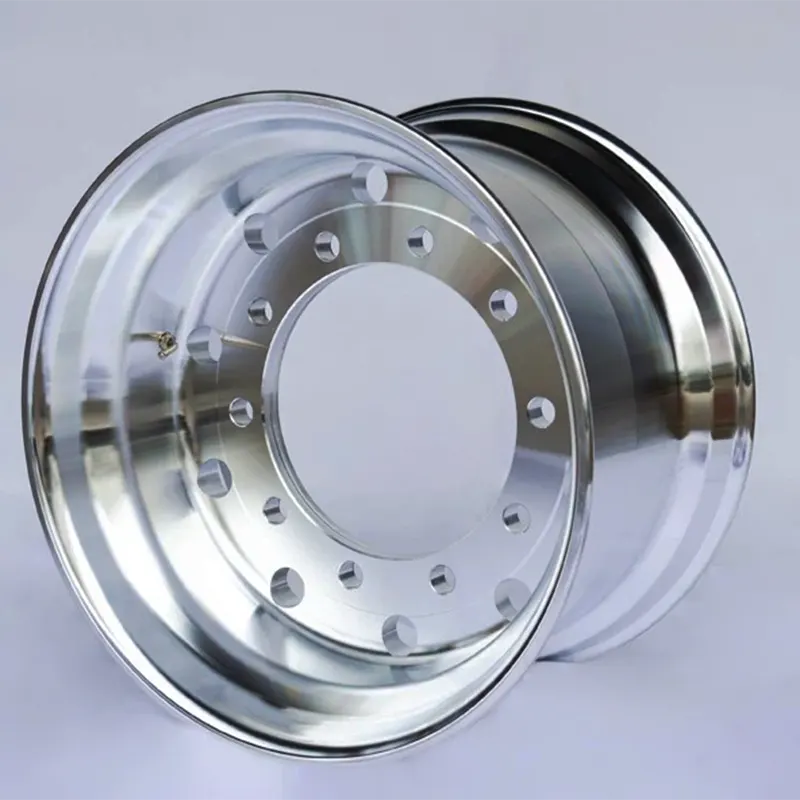

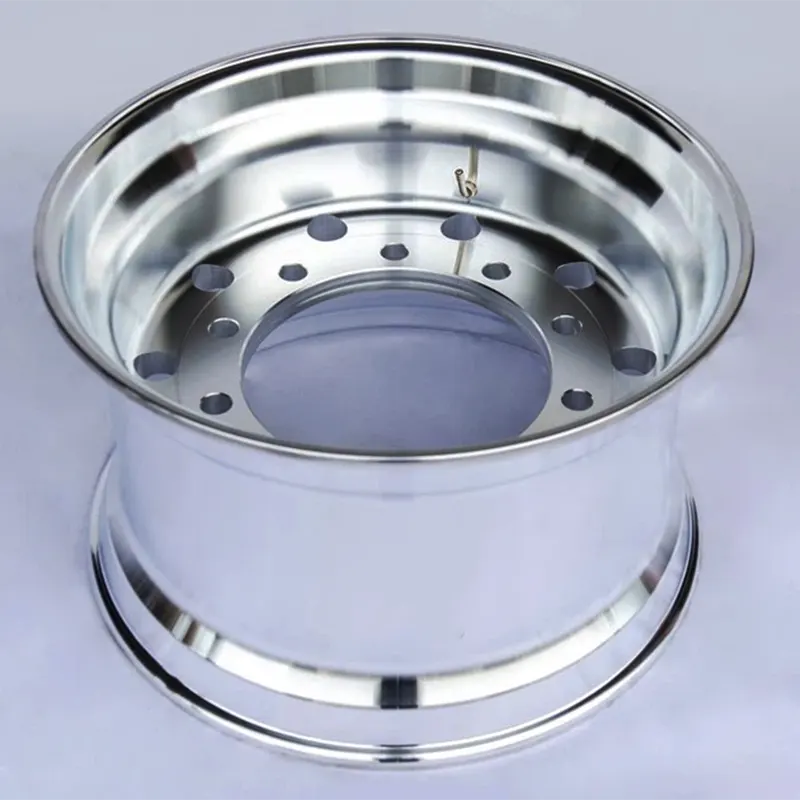

22.5×13 Forged Aluminum Super Single Wheels

22.5x13 Forged Aluminum Super Single Wheels
22.5x13 Forged Aluminum Super Single Wheels - Image 2
22.5x13 Forged Aluminum Super Single Wheels - Image 3
22.5x13 Forged Aluminum Super Single Wheels - Image 4
22.5x13 Forged Aluminum Super Single Wheels - Image 5
22.5x13 Forged Aluminum Super Single Wheels - Image 6
Category Tag

Forged Aluminum Wheels for Commercial Truck

Additional information

Wheel Size

22.5×13.00
Wheel Type

forged alloy wheels
Finishing

Double-Side Polished, Inside Polished, Machined, Outside Polished
Match tyre size

18R22.5 | 415/45R22.5 | 445/65R22.5 | 455/55R22.5
Ask for a quote

Product Details

Forged Aluminum Wheels for Commercial Truck



Size Outset Disc Thickness P.C.D. Bolt Holes Hand Holes C.B.D Max Loading VALVE Weight
(Kg)
(mm) (mm) (mm) No. Dia. (mm) No. (mm) （kg）
22.5×13.0 14 28 Φ335 10 Φ26.5 10 Φ281.2 5200 40MS 32.5
22.5×13.0 14 28 Φ335 10 Φ32.5 10 Φ281.2 5200 40MS 32.3
22.5×13.0 14 28 Φ285.75 10 Φ26.5 10 Φ220 5200 40MS 34.5
22.5×13.0 14 28 Φ285.75 10 Φ32.5 10 Φ220 5200 40MS 34.3
