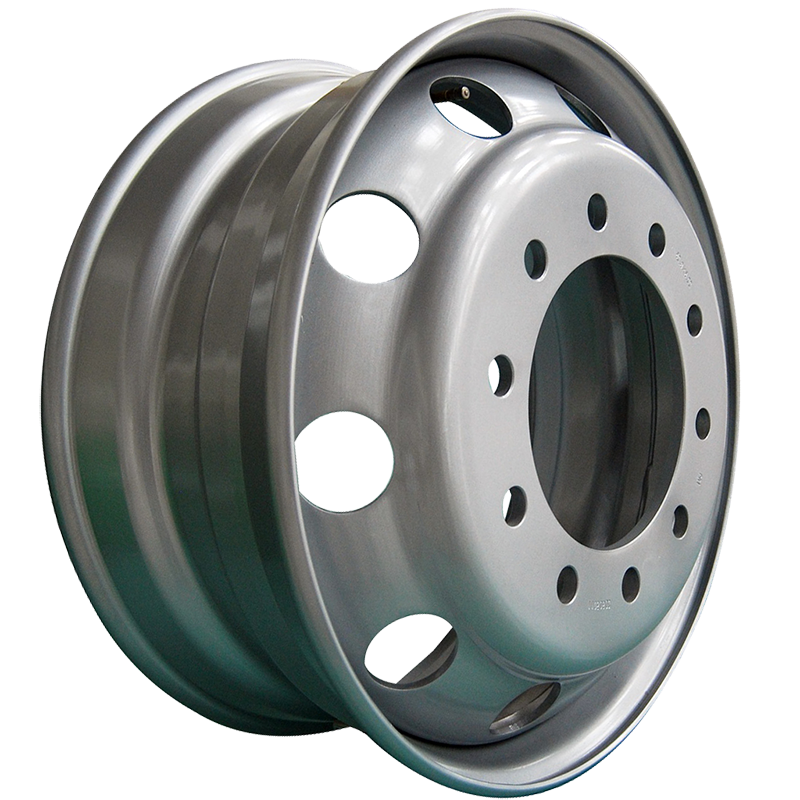

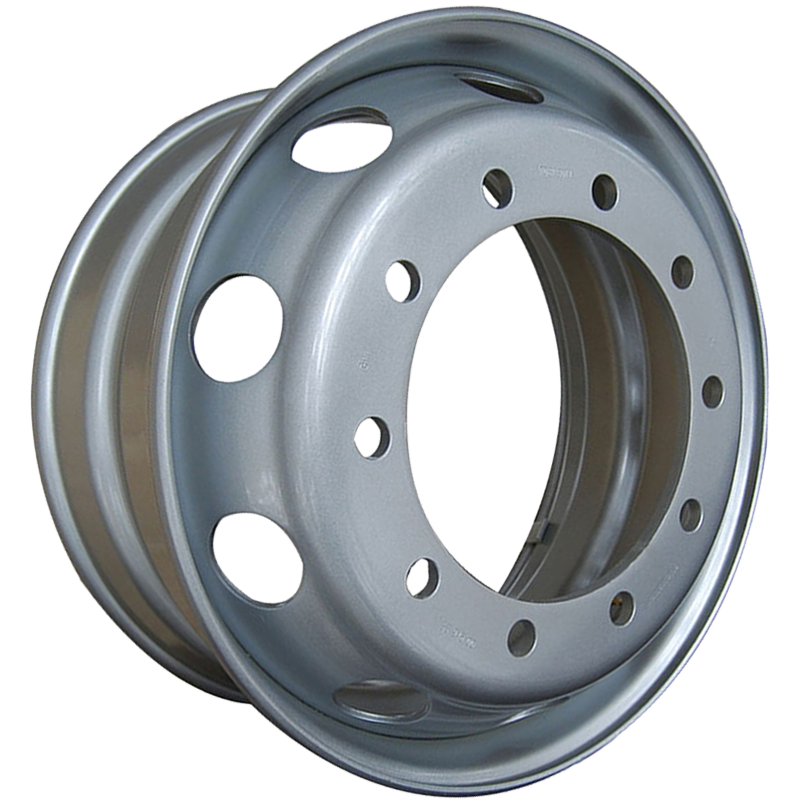

22.5×9.00 Tubeless Steel Wheels

22.5x9.00 Tubeless Steel Wheels
22.5x9.00 Tubeless Steel Wheels - Image 2
Category

STEEL COMMERCIAL VEHICLE WHEELS

Additional information

Wheel Size

22.5×9.00
Wheel Type

Tubeless
Finishing

Painted
Match tyre size

12R22.5 | 295/80R22.5 | 305/70R22.5 | 315/70R22.5 | 315/80R22.5
Ask for a quote

Product Details

WHEEL SIZE BOLT HOLES P.C.D CBDr Disk Thickness OFF SET
HOLES NO. HOLE DIA HOLE TYPE (mm) （mm） （mm） (mm)
22.5×9.00 8 32 SR22 275 214 14/16 175
22.5×9.00 8 32 SR22 285 221 14/16 175
22.5×9.00 8 26 1×45° 275 220 14/16 175
22.5×9.00 8 26 1×45° 275 214 14/16 175
22.5×9.00 10 32 SR22 285.75 222 14/16 175
22.5×9.00 10 26 1×45° 285.75 220.5 14/16 175
22.5×9.00 10 26 1×45° 335 281 14/16 175
22.5×9.00 10 27 SR18 335 281 14/16 175
22.5×9.00 10 26 1×45° 335 281 14/16 175
