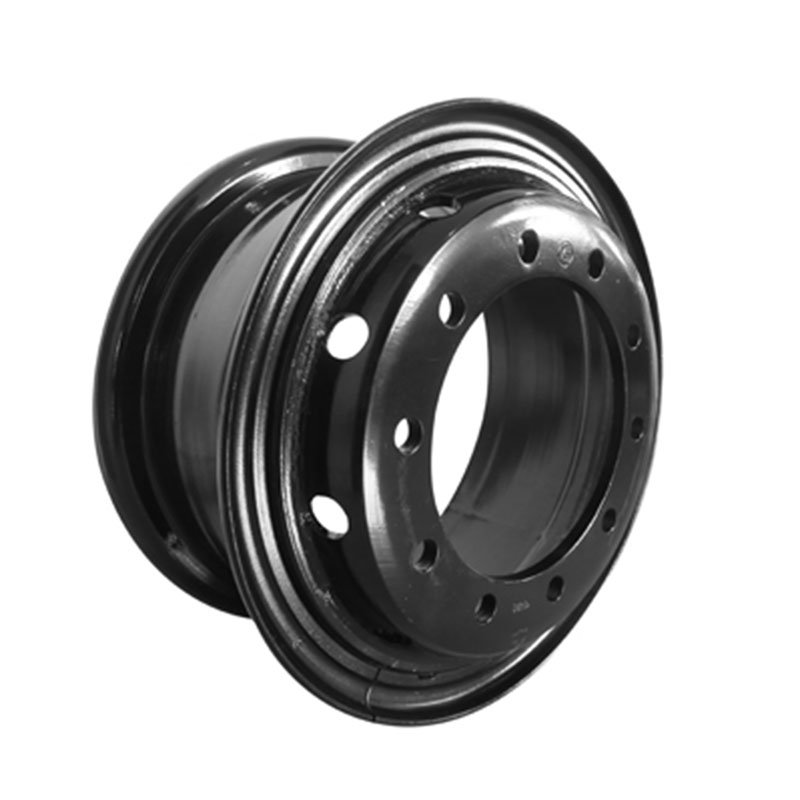

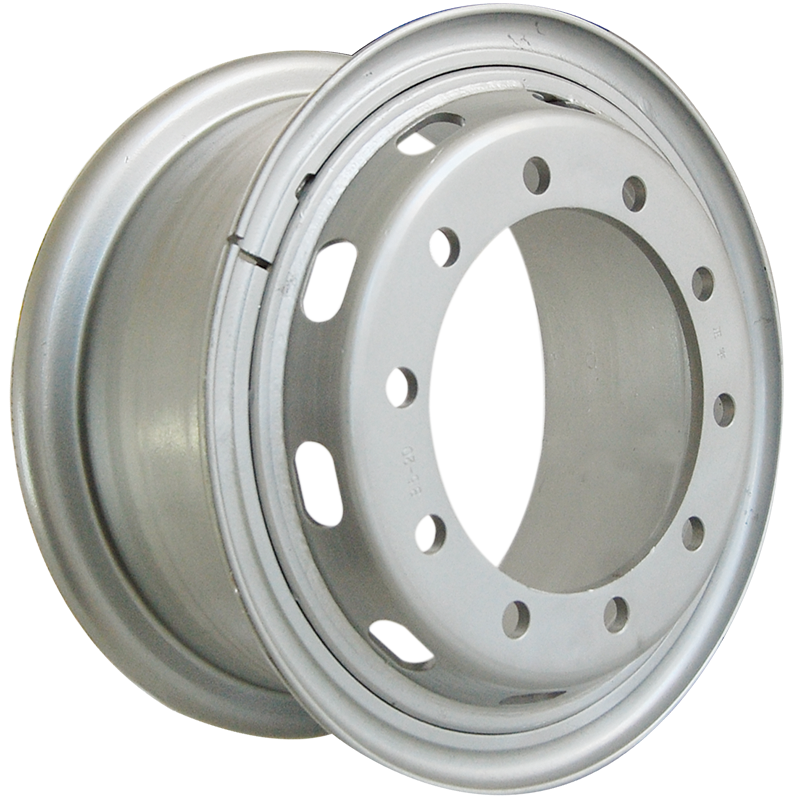

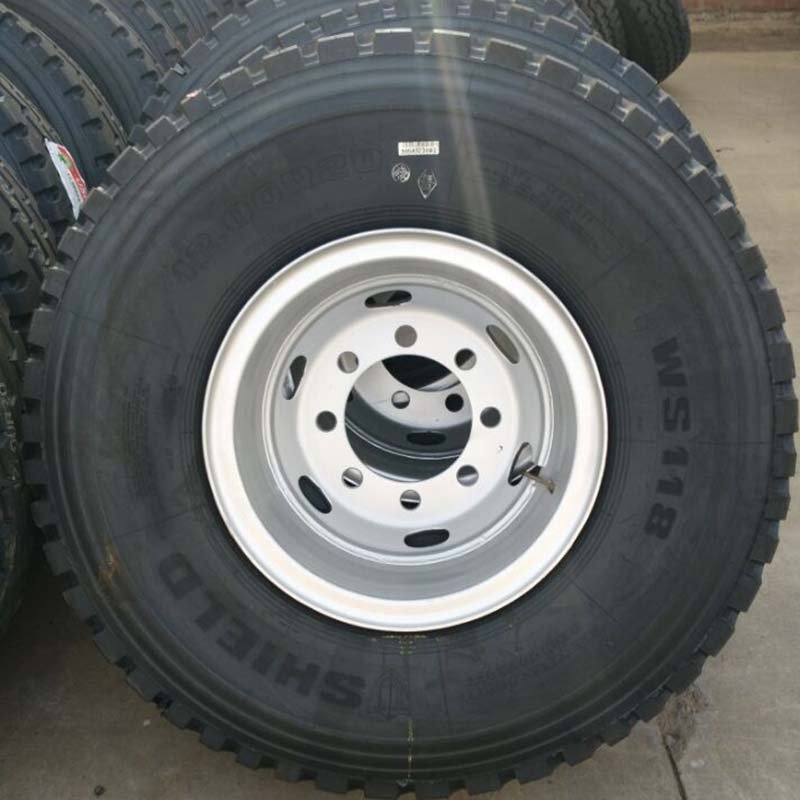

STEEL COMMERCIAL VEHICLE WHEELS
| Wheel Size | 8.5-20 |
|---|---|
| Wheel Type | Tube-type |
| Finishing | Painted |
| Match tyre size | 12.00-20 | 12.00R20 |
| SIZE | DISC THICKNESS | BOLT HOLE | P.C.D | C.B.D | OFFSET | QUANTITY/20′ | Venthole type | LOAD CAPACITY（kg） | ||
| NO. | DIA. | TYPE | ||||||||
| 8.5-20 | 14 | 10 | φ26 | 1×45° | φ335 | φ281 | 175 | 320 | 10-36*60 | 3800 |
| 8.5-20 | 16 | 10 | φ26 | 1×45° | φ335 | φ281 | 175 | 320 | 10-φ36 | 3900 |
| 8.5-20 | 14 | 10 | φ26 | 1×45° | φ285.75 | φ220 | 175 | 320 | 10-36*60 | 3800 |
| 8.5-20 | 14 | 10 | φ32.5 | SR22 | φ285.75 | φ222 | 175 | 320 | 10-36*60 | 3800 |
| 8.5-20 | 14 | 8 | φ32.5 | SR22 | φ285 | φ221 | 175 | 320 | 8-35*80 | 3800 |
| 8.5-20 | 14 | 8 | φ26 | 1×45° | φ275 | φ221 | 175 | 320 | 8-35*80 | 3800 |
| 8.5-20 | 14 | 8 | φ26 | 1×45° | φ275 | φ214 | 175 | 320 | 8-35*80 | 3800 |
