| Wheel Size | 12", 14'', 15", 16", 20", 24", 26", 28", 30", 32", 34", 38", 42" |
|---|---|

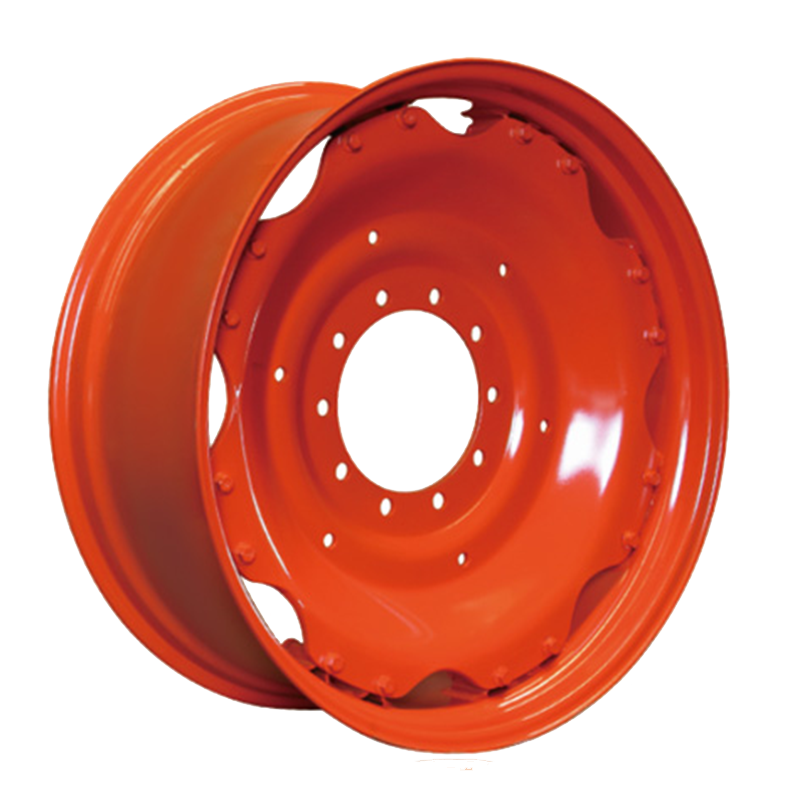

| Wheel Type | dual bolt, flange, single bolt, welding |
| Material | steel |
| Color | Silver or by your order |
| Finishing | Painted |
| Wheel Size | Tire Size | Center Hole (mm) | P.C.D.(mm) | Bolt Hole | Hole DIA.(mm) | Offset (mm) |
| 3.00Dx12 | 4.00-12 | 79 | 114.3 | 5 | 13 | 70 |
| 4.50E x12 | 6.00-12 | 92 | 127 | 4 | 15 | -1 |
| 7.00×12 | 10.0/80-12 | 93/94 | 140 | 5 | 15/16.5/20 | 0/25 |
| 3.00Dx14 | 4.00-14 | 100.5/102 | 161 | 6 | 15/17/20 | 0/25 |
| 4.50Jx14 | 6.00-14 | 110 | 140 | 5 | 15 | 0 |
| 6.00Fx15 | 9.00-15 | 110 | 140 | 6 | 12/15/17 | 0/30 |
| W8x15 | 11 L-l 5 | 110 | 150 | 6 | 14 | 5 |
| 4.00Ex16 | 5.50-16 | 110 | 152 | 4 | 20 | 25/20 |
| 4.50Ex16 | 6.00-16 | 110/118 | 152.4 | 6 | 17/18/20 | 0/80 |
| 5.00Fx16 | 6.50-16 | 120.5 | 205 | 5 | 16.5 | 0 |
| 5.50Fx16 | 7.50-16 | 120/130 | 165 | 6 | 17/20 | 20 |
| 6.00Fx16 | 7.50-16 | 136 | 170 | 6 | 18 | -11 |
| W7x16 | 8.3-16 | 140 | 190 | 6 | 19 | 25/30 |
| W8x16 | 9.5-16 | 140/141 | 180 | 6 | 17 | 0/30/50 |
| W9x16 | 9.5-16 | 151/152.4 | 203.2 | 8 | 17/18 | 7/70 |
| W10Lx16 | 11.00-16 | 158 | 205 | 5 | 17 | 0/20 |
| W11Lx16 | 13/65-16 | 161 | 205 | 6 | 19/21.5 | 0 |
