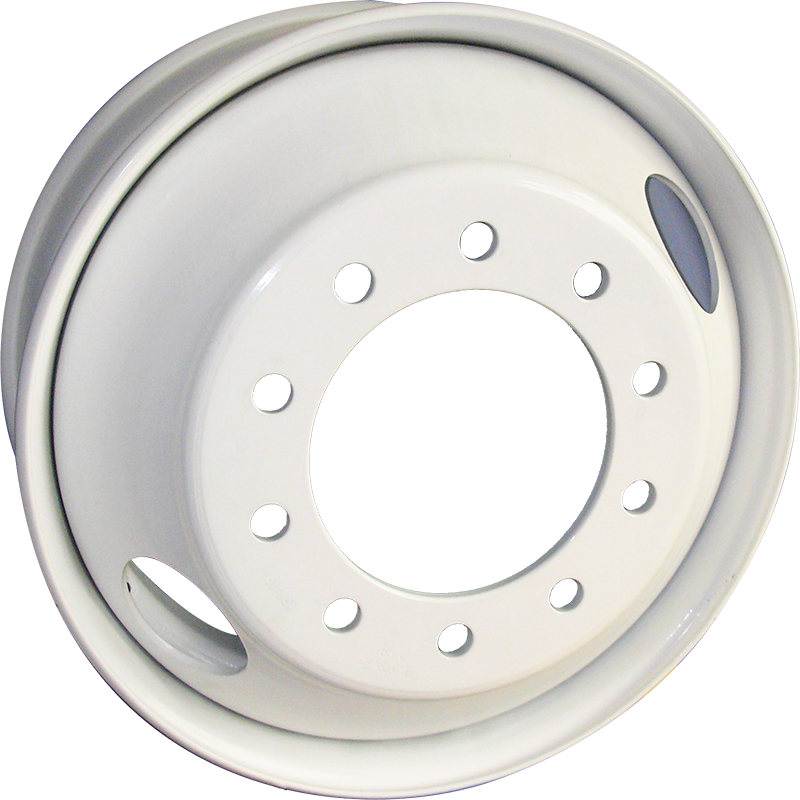

STEEL COMMERCIAL VEHICLE WHEELS
| Wheel Size | 22.5×6.75 |
|---|---|
| Wheel Type | Tubeless |
| Finishing | Painted |
| Match tyre size | 9R22.5 |
| WHEEL SIZE | BOLT HOLES | P.C.D | Center Bore Diameter | Disk Thickness | OFF SET | ||
| HOLES NO. | HOLE DIA | HOLE TYPE | (mm) | （mm） | （mm） | (mm) | |
| 22.5×6.75 | 8 | 32.5 | SR22 | 275 | 214 | 12/14 | 152 |
| 22.5×6.75 | 8 | 26 | SR22 | 285 | 221 | 12/14 | 152 |
| 22.5×6.75 | 8 | 24 | 1×45° | 275 | 221 | 12/14 | 152 |
| 22.5×6.75 | 8 | 32.5 | SR22 | 285 | 214 | 12/14 | 152 |
| 22.5×6.75 | 8 | 32.5 | SR22 | 275 | 214 | 12/14 | 152 |
| 22.5×6.75 | 6 | 32.5 | SR22 | 222.25 | 164 | 12/14 | 158 |
| 22.5×6.75 | 10 | 26 | 1×45° | 335 | 281 | 12/14 | 152 |
