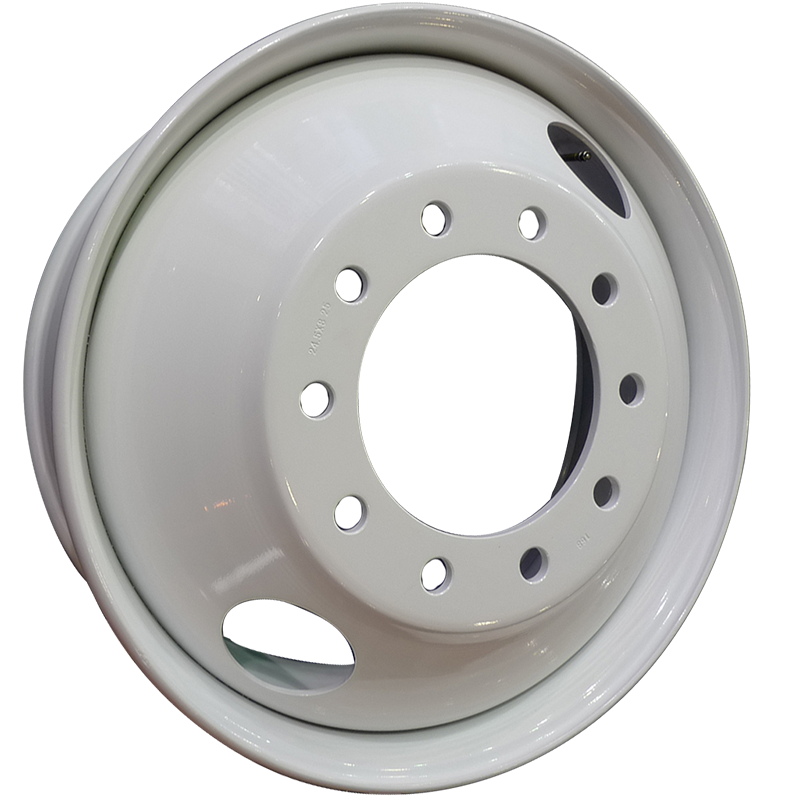

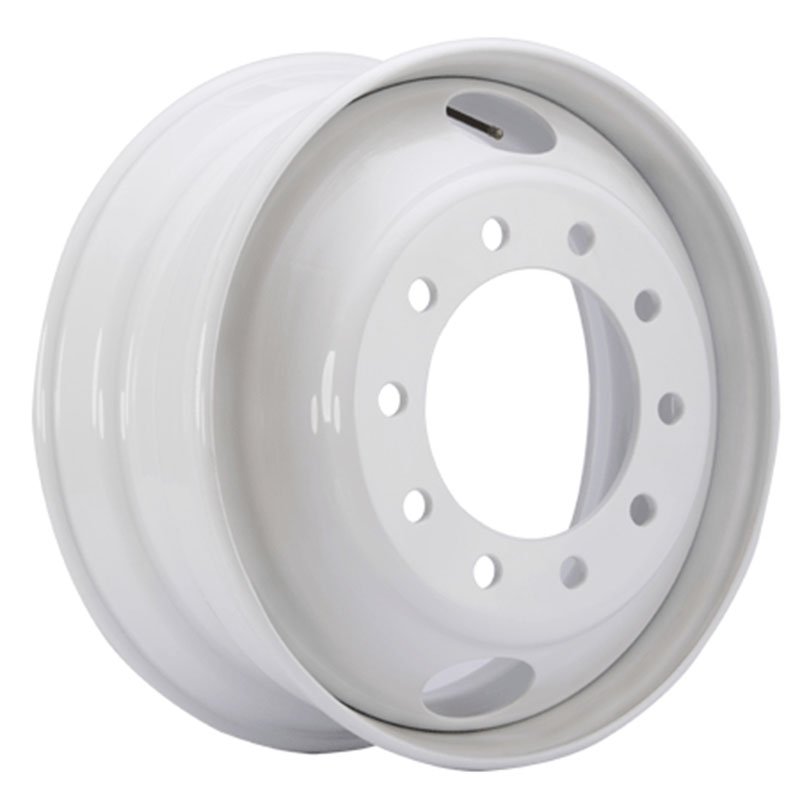

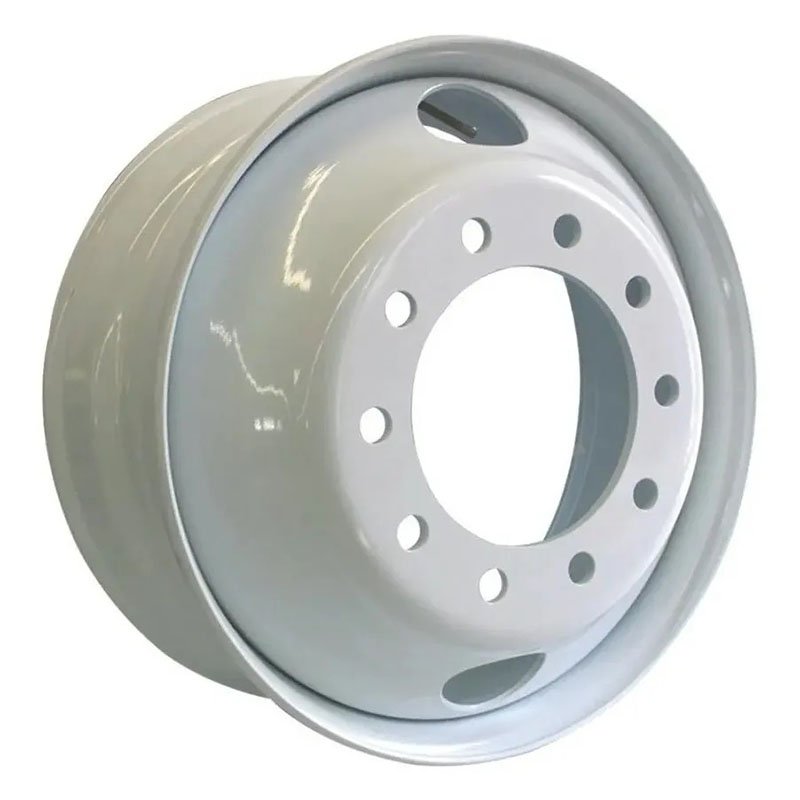

STEEL COMMERCIAL VEHICLE WHEELS
| Wheel Size | 24.5×8.25 |
|---|---|
| Wheel Type | Tubeless |
| Finishing | Painted |
| Match tyre size | 11R24.5 | 285/75R24.5 |
| WHEEL SIZE | BOLT HOLES | P.C.D | Center Bore Diameter | Disk Thickness | OFF SET | ||
| HOLES NO. | HOLE DIA | HOLE TYPE | (mm) | （mm） | （mm） | (mm) | |
| 24.5×8.25 | 10 | 26 | 1×45° | 285.75 | 220 | 14 | 168 |
| 24.5×8.25 | 10 | 26 | 1×45° | 285.75 | 214 | 14 | 168 |
| 24.5×8.25 | 10 | 32.5 | SR22 | 285.75 | 221 | 14 | 168 |
